Specification

Model: MP5105
Color: Black/White
Material: Iron, Aluminium, Plastic, Stainless Steel
Process: Laser Cutting, Bending, Welding, Grinding, Descaling, Plastic Spraying
Mounting Type: Freestanding
Operation Mode: Manual
Power Source: Corded Electric
Plug Type: US Standard
Power: 600W
Voltage: 110V/60Hz
Current: 5.5A
Temperature Range: 0-232°C/32-450°F
Heating Pad Capacity: 295.7-887ml/10-30Oz
Time Range: 0-999s
Gross Weight: 8kg/17.64 lbs
Net Weight: 7kg/15.43 lbs
Heating Pad Length: 27cm/10.63in

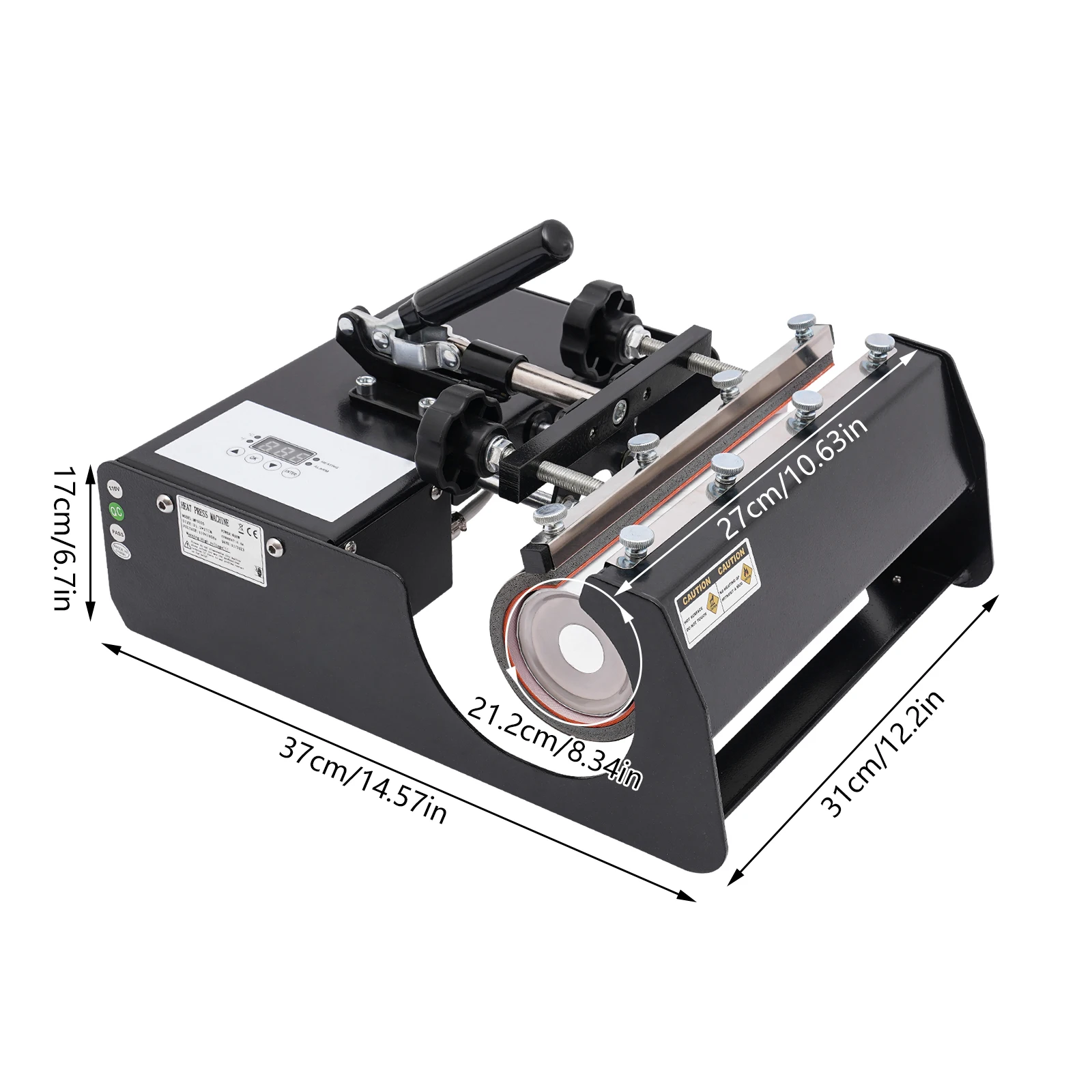

Product Size: 37*31*17cm/14.57*12.2*6.7inch
Package Size: 44.5*37*30cm/17.52*14.57*11.81inch

Key Features

Sturdy and Durable: The machine is mainly made of high-quality Iron, aluminium, plastic, and stainless steel with laser cutting, bending, welding, grinding, descaling, plastic spraying treatments, making it resistant to deformation, oxidation, corrosion, rust, and high temperature. So it can keep practical and beautiful without frequent replacement.

High Safety: Compared with traditional machines, our product with an equipped fuse, error correction, and an intelligent audible alarm ensures your safety when using it.

Even Heating: The cup is wrapped by a cylindrical heating pad that heats evenly and prints the pattern onto the mug. The adjustable temperatures (32-450°F) and heating times (0-999s) are available to meet your different pattern printing needs, with even colours and clear patterns.

High Efficiency: Thanks to the long heating pad(10.63 inches) and 600W of power, it can heat press up to 10-30 oz capacity mugs or glasses, allowing you to DIY your favorite mugs in a short time!

Thoughtful Design: You can adjust the pressure knob clockwise to increase the pressure and counterclockwise to decrease the pressure, so that both straight and tapered mugs can be transferred.

Enjoy DIY: With it, you can DIY the pattern image of your beloved person or object on a cup at home, so that you can not only enjoy the fun of the production process but also better express your love and adoration!

Ideal Gift: Thanks to its beautiful appearance and functionality, you can give it to your friends as a housewarming, Christmas or Thanksgiving gift!

Protective Package: To prevent the product from being damaged during transportation, we packed it with sponge to protect your products to the maximum extent possible.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details
Detachable Power Cord: It not only has the advantage of more stable performance and easy storage but also improves your safety when using it.

Raised Pads: The raised pads on the bottom of the product ensure stability when in use and protect the countertop from scratches.

Intelligent Panel: The intelligent panel allows for smooth operation while providing accurate temperature and time reading and control.

Application

It can be used both commercially and domestically, widely used for mugs, glasses, thermos, aluminum jugs, and other DIY cups made of glass, ceramics, metal, and other heat-resistant materials.

How to Use

1. Pressing the "OK", the screen shows "P-1", you need to set a working temp by pressing"▼" "▲"(eg.380°F).
2. Pressing the“OK", the screen shows“P-L", you need to set a protective temp by pressing "▼" "▲"(eg.200°F).
3. Pressing“OK* (the third time) and the screen shows"P-2", you need to set the time by pressing “▼" “▲"(eg.40s).
4. Pressing "OK" (the fourth time) to confirm all the settings. The machine starts to heat up and reaches the protection temperature.
5. Place the tumbler into the machine, then press "ENTER" and the machine starts to heat up to the working temperature(eg.380°F).
6. The 40-second countdown is over, press“ENTER” again to end the sound, and the temperature will automatically drop to the protection temperature(eg 200°F), which is convenient for quick use again.

Problems and Solutions

1.After powering on, the instrument does not light up when the power on button is pressed.
Solution: Check the plug connection.
2.Unable to heat or not heated to set temperature
Solution: 1. Check that the air plug at the end of the coaster is making good contact. 2. Replace the coaster.
3.The pattern is missing and the color is very light
Solution: Adjust temperature or extend heating time. Make sure the cup fits snugly into the coaster.
4.The pattern is blurred and yellowed
Solution: Reduce the time and temperature, you can adjust the time and temperature by using discarded cups and then heat press them.

Package Included

1* Mug Press Machine
1* Power Cord
1* English User Manual

Notes

1.To prevent burns, please wear gloves (not included) when operating the machine.
2.Please check the voltage before use and keep children away from the machine.
3.After the heating is completed, the heating indicator light goes out; the countdown needs to be operated manually, press the timing button, and then start timing, the meter counts down, and the end of the prompt sounds.
4.Please read the operating manual and labels on the machine completely before use. And pay particular attention to the safety instructions included.
5.Please prohibit empty burning, otherwise the coaster will blister and be directly broken, the whole coaster must have a cup(not included) during the heating process, if a cup is not long enough, then you need to put two,to ensure that there is no gap in the coaster.
6.Please do not touch the heating element after pressing it during operation. Please do not use the machine continuously for more than 1.5 hours, the machine needs to rest for 10-20 minutes.
7.Please make sure to unplug the machine and allow it to cool down completely before storing it. Please do not use water to clean the heating element and use lubricant(not included) for regular machine connection maintenance.
8.Please use it in a well-ventilated place as the steam generated during heating may irritate sensitive people.
9.You will need to set different temperatures, times, and pressures depending on the material and size of the cup.
10.Please place the cup in the middle of the heating element for more even heat transfer.
11.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
